Coating Around a Garage Floor Drain: What Happens at the Grate

The grate comes out first and goes back last. In between, the detail at the drain body decides whether the edge around it is still tight in year ten - and whether the quote changes after the grinder starts.

By the Everclad Coatings team · Published October 25, 2026

The grate is lifted before anything else happens, and the coating is terminated on the inside face of the drain body rather than stopped somewhere near it. That is the whole answer for a standard garage floor drain: pull the grate, plug the throat, hand-grind the dish the walk-behind machine cannot reach, then carry base coat, flake and topcoat over the dish and about an inch down into the opening. The grate is reset after cure and never coated. None of that is an add-on. What can genuinely cost extra is a corroded ring, a re-poured dish or a floor that holds water, and you should hear about those at the walkthrough rather than on install day.

What is actually down there

Most homeowners have never had the grate out. Five parts, and each behaves differently under a coating.

• The grate. Cast iron in older Wisconsin and Illinois garages, glass-filled plastic in newer builds. It sits in a rebate and lifts out with a screwdriver.
• The ring or flange. The rim the grate lands on, cast into the concrete when the slab was poured. This is the part that corrodes.
• The drain body and throat. The short vertical section below the ring, cast iron or PVC, leading down to the outlet.
• The dish. The shallow saucer of concrete graded down to the drain, usually two to four feet across. It was troweled by hand and it is rarely as smooth or as even as the rest of the floor.
• The trap. A bend below the floor holding a plug of water that keeps drain-line air out of the garage. Wisconsin rules set that seal at not less than two inches and not more than four, and cap the horizontal run for a residential garage floor drain discharging through an interior trap at 25 feet (SPS 382.32).

Worth knowing where yours discharges, because it varies by age and municipality: some run to a sump or catch basin, some to the sanitary side under older permits. Ask your building inspector rather than guessing.

The detail at the grate, step by step

1. The grate comes out and gets labelled. Grates are not interchangeable and frames are often slightly out of square, so a garage with two drains gets two tags.
2. The throat is plugged. Closed-cell foam or rag packed below the ring and taped over. Grinding slurry, flake and liquid resin all find an open drain, and resin set in a trap is a plumbing bill rather than a touch-up.

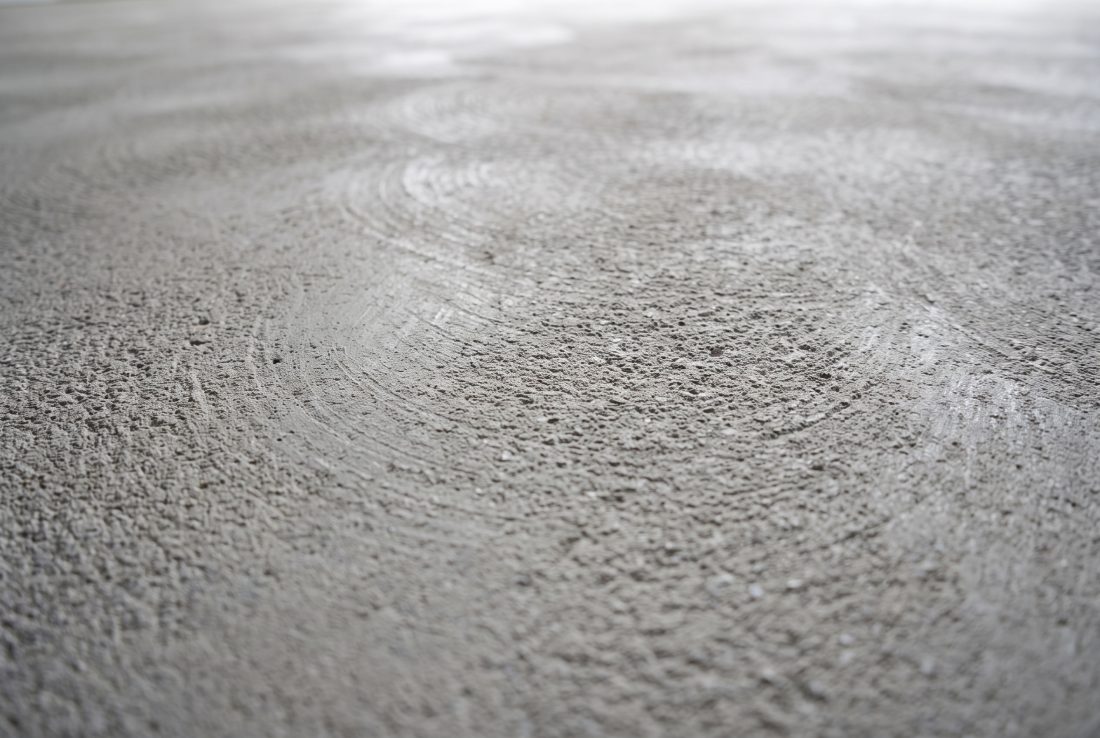

3. The field gets ground. Standard diamond grinding across the slab, stopping short of the dish.
4. The dish gets opened by hand. A walk-behind machine rides on its own footprint and cannot follow a curved fall, so the saucer is done with a hand grinder and a cup wheel. Slower, and it decides whether the coating bonds there.
5. The shoulder is rebuilt if it needs it. Concrete broken away around the ring is chased back to sound material and rebuilt with repair mortar, giving the film a square edge to sit against.
6. The system is carried in and terminated. Base coat, flake and topcoat run across the dish, over the shoulder and about an inch down the vertical face inside the drain body, finishing in shadow below the plane anything travels through.
7. The grate goes back after cure. Not the same afternoon. It is heavy metal and the film under it needs its full seven days.
8. Nothing gets sealed in. No caulk bead locking the frame down. A drain you cannot open is a drain you cannot maintain.

It is the same rule we follow where the floor meets the overhead door, set out in our guide to the door line and the apron: never end a film as a knife edge on a flat surface. There it takes a saw cut to make the groove. At a drain the geometry hands you one.

Part by part: what happens to each piece

Part	What we do	Why
Grate	Removed, labelled, reset after full cure	Stays a serviceable part, stays bare metal
Ring or flange	Cleaned back to sound metal, shoulder rebuilt if broken	Gives the film a square edge and stops rust bleeding through
Drain throat	Plugged during work, coated about an inch down inside	Puts the termination out of the wear path
Dish	Hand ground, then fully coated	The wettest concrete in the garage, so the last place to leave bare
Trap and line below	Untouched, protected, flushed after	Plumbing is not ours to modify, and resin in a trap is unrecoverable

Cast iron, rust bleed and the orange halo

The failure people actually notice on a coated floor with a drain is a rust-coloured stain creeping out from under the grate onto a new grey floor. It looks like the coating went wrong. It did not.

It is corrosion of the cast iron ring, and in old buried castings often graphitic corrosion, where the iron leaches out and leaves a soft graphite shell that still looks like metal until a screwdriver goes through it. Iron oxide in solution wicks along the shoulder and stains whatever is beside it, so coating over the problem traps the source under the film.

The ring is therefore assessed with the grate out, before anything is quoted:

• Surface rust. Wire-cup back to sound metal, treat, coat the shoulder normally. No change to the price.
• Scaling but solid. Same treatment, plus honest expectations: it will weep again eventually, and a new floor is the natural moment to replace it instead.
• Soft to a probe. Replacement. The casting is chipped out, a new frame and grate bedded in repair mortar, and it cures before coating goes near it.

In garages around Kenosha County, Racine and the north Chicago suburbs, these rings have spent decades sitting in brine dripping off winter vehicles, which is why more of them are soft than owners expect. The same chloride story runs through our guide to ice melt and coated floors.

Standing water and the 25 mil truth

The second complaint is a puddle that never leaves, and here the honest answer is unwelcome. A full flake system finishes at roughly 25 mils. That is twenty-five thousandths of an inch, about the thickness of a business card. A quarter-inch birdbath beside a drain is ten times that. There is no version of a coating that regrades a floor, and any bid implying otherwise is selling a fix it cannot deliver.

Situation	What a coating does	The real fix
Correct fall, dries out on its own	Nothing to solve; it drains as before	None needed
Film of water that evaporates in a day	Water now sits on a non-absorbent surface instead of soaking in	Live with it, or squeegee
Shallow low spot, an eighth of an inch or so	Unchanged in depth	A feathered ramp in the repair stage can break the pond
Real birdbath, a quarter inch or more	Unchanged, and now more visible against a gloss finish	Saw out and re-pour the dish, or grind the high side

The target fall toward a drain is about an eighth of an inch per foot; below that, water finds whatever the trowel left behind. The genuine benefit is that a coated slab stops absorbing it. A puddle on bare concrete is brine soaking into the pores and freezing there. A puddle on a coated floor is just a puddle, which matters most in an unheated attached garage, and is the same argument running through our guide to why coatings fail.

A drain that stopped draining, or started smelling

The smell is a dry trap. The plug of water in the bend is the only barrier between your garage and the drain line, and in a garage that sees water twice a year it evaporates. A jug of water restores it; the mechanism is explained under trap (plumbing). If the smell returns within a week, water is leaving faster than evaporation explains, and that is a plumbing call.

A drain that will not take water needs clearing first. One that has been swallowing sand, salt grit and leaf litter for thirty years is usually silted rather than blocked. Have it cleared before we come: we will not grind and coat a bay that cannot shed a bucket of water, and slurry during prep has to go somewhere.

What is in the rate, and what is not

This is the edge case competitors use to grow a bid after the equipment is already on the floor, so we will be blunt. Grate removal, throat protection, hand grinding the dish, shoulder repair and terminating the film inside the drain body are prep, and prep sits inside the same square-foot number as the grind, the crack repair, the flake and the topcoat. It does not move once work has started.

Three things are quoted separately, all named in writing at the walkthrough:

• Replacing a frame and grate. Castings plus a small concrete repair.
• Re-pouring a dish, or regrading a bay. Concrete work with its own cure time, done before we coat.
• Trench drains in a shop or commercial bay. Linear metres of edge rather than one opening, covered on our commercial and shop floor guide.

If there is a drain in your floor and you want to know what happens to it, say so when you book a free quote. The grate comes up during the walkthrough, which is the only way anybody can answer this honestly, and the flat pricing is published before we get there.
